Non Return Valve

Engineered to Prevent Reverse Pressure.

Non Return Valve

Varie Non-Return Valves are designed to ensure unidirectional flow and prevent backflow in water distribution and pipeline systems. Crafted from high-quality brass, stainless steel, or cast iron (based on application), these valves offer robust performance and long-term durability. Available in swing-type, spring-loaded, and dual-plate variants, they suit both vertical and horizontal installations. Varie NRVs are ideal for pump lines, water supply systems, and industrial setups requiring dependable pressure retention. With precise sealing and minimal maintenance needs, they provide engineers and contractors with a trusted solution for protecting plumbing integrity. Downloadable technical datasheets and specifications are available to support selection and installation.

Know More

Non Return Valve - Features

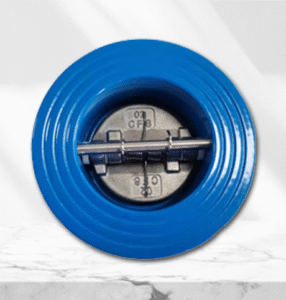

DUAL PLATE WAFER TYPE CDP5
• Most compact in width; needs minimal space between 2 flanges.
• Lighter in weight – so can be easier to use between plastic flanges.
• Water hammer effect is minimized as closure of valves is not dependent on back pressure or flow.
• Dual Spring on each flap ensures that the valve opens and closes at minimal pressure.

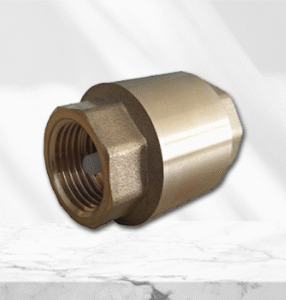

SPRING LOADED CHECK VALVE CSP3
• Low weight plastic disc helps reduce the pressure drop and needs minimal pressure to actuate it.
• Suitable for both horizontal and vertical lines.

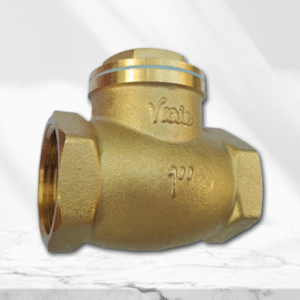

SWING (FLAP) TYPE CSW2
• Maximized bore area to minimize the pressure drop.
• Nitrile seal on flap to give drop tight seal even at low reverse pressure.

Non Return Valve Types

Non return valve allows Flow in one direction and stops reverse flow.

CDP5 – Dual plate wafer type check valve

Most suitable where Water hammer is expected as in pump outlet delivering to overhead tank.

Sizes – 50 mm to 300 mm

CSP3 – Spring type (brass) check valve

Can be installed in horizontal or vertical lines; most suited for lower sizes upto 50mm

Sizes – 15 mm to 50 mm

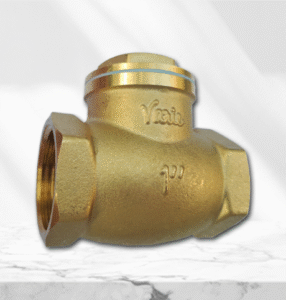

CSW2 – Swing type (brass) check valve

Most suited where reverse back pressure are low and where minimal pressure drop i desired; of all the 3 types, swing check assures maximum flow.

Sizes – 15 mm to 65 mm
